- A pair of left-right transverse moving brushes in cleaning system provide and efficient
cleanliness on the plates.
- Built to exacting standards with stainless steel tank throughout for anti-strong acid and
alkali. Avoid fragmentation and cracking damages, which will be happened on PVC tank.
- Full electronic controls enable easy and timesaving pre-set of functions.
- Suitable for repeated printing plates, cost and timesaving.
Processing Step
Machine Size (mm)
Specification
|
MODEL |

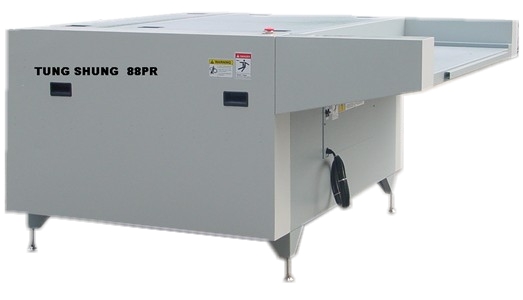

66PR |
88PR |
130PR |
|
Min. Plate Width (cm) |
25 |
25 |
25 |
|
Max. Plate Width (cm) |
66 |
88 |
130 |
|
Min. Plate Length (cm) |
40 |
40 |
40 |
|
Plate Thickness |
0.12 - |
0.12 - |
0.12 - |
|
Capacity Of the Cleaning Tank (L) |
27 Litres |
35 Litres |
50 Litres |
|
Plate Ink Clean |
25 - 60sec |
25 - 60 sec |
25 - 60 sec |
|
Dryer Temperature Control |
30oC - 60oC |
30oC - 60oC |
30oC - 60oC |
|
Power Supply |
|
|
|
|
Machine Net Weight |
300kgs
|
380kgs |
450kgs |
|
Machine Gross Weight |
420kgs |
540kgs |
665kgs |
|
Packing Dimensions (cm) (LxWxH) |
210 x 125 x 118 |
210 x 145 x 118 |
210 x 190 x 118 |
